Blank Media Bike (2011 )   Frame: Hi Tensile strength 1020 steel 20.5" Toptube Forks: Blank Hi Tensile strength 1020 steel Cranks: 3pc 4130 chromoly 175mm Bottom bracket: Sealed Mid Bottom Bracket Sprocket: Blank 25T steel Freewheel: 9T cassette w/1-piece chromoly driver Chain: KMC Z410 Rear Brake: Tektro 907 Forged Alloy U-brake Front Brake: Generix Bars: Blank Hi Tensile 1020 steel Bar 7.5"X 25" Stem: Forged alloy front load Headset: 1 1/8" A Headset threadless Grips: New Blank Arrow grip Front Hub: 36 Hole, 10mm unsealed Rear Hub: 36 Hole, 14mm semi sealed cassette Rims: Alloy, 36 Hole Front Tyre: 20x1.95" Kenda Kontact Rear Tyre: 20x1.95" Kovert Rr Seat: Blank ultra slim seat Seatclamp: Alloy single bolt Pedals: Wellgo plastic freestyle Weight: 27.5LBS (Approx)

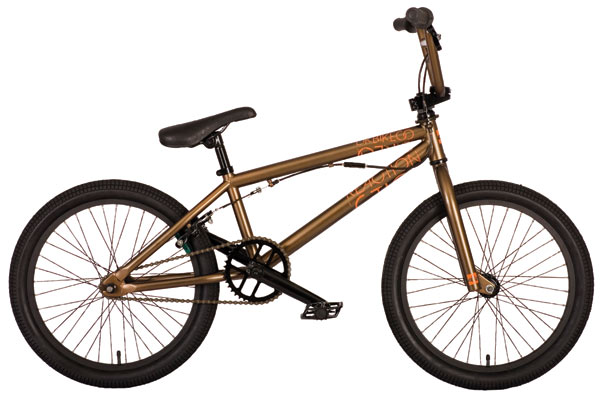

DK Reaction Bike (2009)   Entry level bike designed for park and street use. Frame:Dk Park/Street design Frame Fork: Cromoly steer tube Handlebars: Dk 2pc Design. Front Hub: DK Alloy 36H 10mm Rear Hub: Dk Rear 14T 14mm 36H Rims: Alloy 36H Black Rear Brake:TekTro with Driving Force gyro system Front Brake: Generic Caliper Tyres: Kenda Street design Pedals:Platform alloy with molded pins Cranks: Tubular 3pc crank 175mm Sprocket: DK 39T Mid Bottom Bracket Saddle: DK Street with 7mm Seat Post: Alloy 25.4mm Grips: Dk Tsuka Pegs: DK 1 Pair Top Tube 19.5inch Chain Stays 13.75inch Head tube angle 74.5 Degrees Seat tube Angle 72 Degrees Colour: Copper or Blue

WeThePeople Zodiac 2011 BMX Bike   Frame: 4130 full CrMo, butted DT, 20.8" TT / 13.25" CS / 75°HT Fork: full 4130 CrMo fork, 1pc bulged CrMo steerer Cranks: Salt Plus ( L&R) tub. 3pc crank CrMo, 175mm, 8 spline Bottom Bracket: Salt mid size BB, press fit, sealed bearing Pedals: new éclat “Plaza” PC pedals Sprocket: Salt Plus 6061 T6 Alloy, CNC, 25T sprocket Freewheel: 9T 1-piece cassette driver, L&R switch drive, sealed bearing Chain: Salt Plus chain, 510HX type Rear Brake: new Salt Plus Alloy u-brake rear (cold forged) Front Brake: Generic calliper Levers: new Salt Plus Alloy brake lever Bars: full 4130 CrMo bar, 8.25" height, wide style Stem: new Salt Plus CNC Alloy top loading stem Headset: new Salt Plus int. headset, sealed bearing Grips: wethepeople “All Day” grips, Mike Brennan signature Rear Hub: new Salt Plus cassette, 9T L&R switch drive, sealed bearing Front Hub: new Salt Plus female hub, 3/8”s bolts, sb,36H Rims: new éclat “Trippin” aero double wall rim, 36H (front), new éclat “Trippin” straight double wall rim, 36H (rear) Tyres: wtp tyres “Feelin” 20 x 2.25" front / “Feelin” 20 x 2.1" rear Seat: éclat “Gonzo” Pivotal seat Seatpost: integrated in frame / possible to cut off Pegs: n/a Gyro: NO / removable brake hardware Weight: 11.2kg/24.7lbs w/o brakes Size: 20.8" TT

Mongoose Subject Bike (2011)   Frame: Full Hi-Ten Forks: Full Hi-Ten Cranks: 1pc Forged Cromo 165mm Bottom bracket: Loose Ball Sprocket: 33T steel Freewheel: 13t Chain: KMC Z-510 Rear Brake: Rush SB933 Alloy U-brake Front Brake: Rush SB900 Alloy Caliper Levers: Rush RX257 Bars: Mongoose Hi-ten 7.5" Stem: Mongoose Front Load 50mm Ext. Headset: 1-1/8" Ahead Grips: Mongoose Kraton Rear Hub: 48H Steel, 3/8"axle Front Hub: 36H Steel, 3/8" axle Rims: Alloy 36H front, 48H rear Tyres: Innova 2.0 Seat: Mongoose Slim Seatpost: 25.4 straight steel Seatclamp: Alloy single bolt slim Pedals: Mongoose Resin Rotor: Pro Rush with Pipeline cable Extras: 1 pair axle pegs

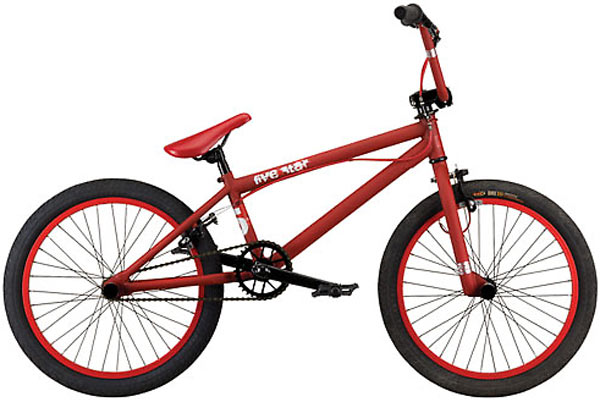

MirraCo Fivestar Bike (2010)   Frame: Fivestar Design, 2-Tube CroMo DT & TT with welded seat-clamp (19.5" top tube length) Fork: MirraCo BMX CroMo legs Cranks: 3-Piece CroMo 170mm with sealed mechanism 12 ball cages BB set Bottom Bracket: 12 ball cages BB set Pedals: FPD "PC" Plastic with 9/16" CroMo axles Sprocket: MirraCo 33t sprocket Freewheel: DNP 13t freewheel Rear Brake: Tektro U-Brake with grey soft compound pads Front Brake: Tektro calliper Levers: Tektro XL 320 alloy Bars: MirraCo 2-pc 7.5" tall Stem: New MirraCo Alloy Aheadset 1-1/8in., front mount, 50mm ext. Headset: VP Aheadset 1-1/8" Grips: Duo Scotty Cranmer Grips with flange Rear Hub: Micro-Drive rear with 14mm axle Front Hub: 3/8" CroMo axle Rims: Alex C-303 alloy 36h black anodised Tyres: CST "Cyclops" 20x1.95" for Park & Street, front & rear Seat: MirraCo 8mm rails Seatpost: Alloy 2.6t 25.4x200mm Pegs: Steel pegs 36mm O.D./ 1 pair Extras: SST Oryg rotor with SST Cables Weight: 27.2lbs Colour: Flat Red or Navy

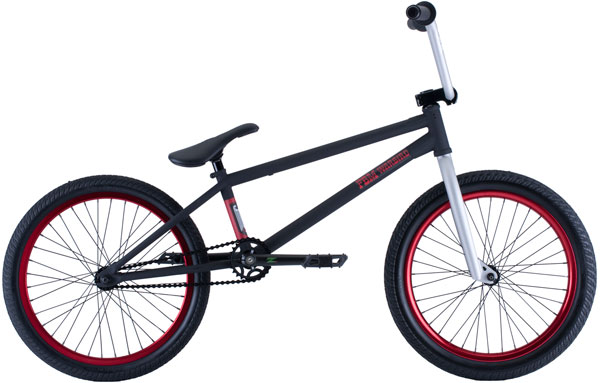

FBM Warbird Bike (2011)   Frame: 20.1", 100% Cro-mo, Double-Butted Top- & Downtubes, Removable Brake Mounts Forks: 100% Cro-mo, Nice Lotus Style, 1-Piece steerer, Tapered Legs Cranks: Nice Donger 3-pc Bottom bracket: Sealed MID Sprocket: Nice Joy, 25T 6061 Alu Driver: 9T Chain: Taya 410 Teflon Rear Brake: Tektro FX-340R U-Brake Front Brake: Generix Levers: Dia-Compe Tech 77 (Rear), Generix (Front) Bars: 8" Cro-mo Stem: Nice Swan, Front Load Headset: FBM Sealed Integrated Grips: FBM Double Fister Rear Hub: 14mm Sealed w/9T Driver Front Hub: 3/8" Sealed Front Rim: Double-Walled, 36h Rear Rim: Nice Double-Dragon, Double-Walle, 36h Tyres: Duo Stunner 2.2" (Front), 1.9" (Rear) Seat: FBM Slim pivotal Seatpost: Pivotal Seatclamp: Integrated Pedals: Nice Plastic

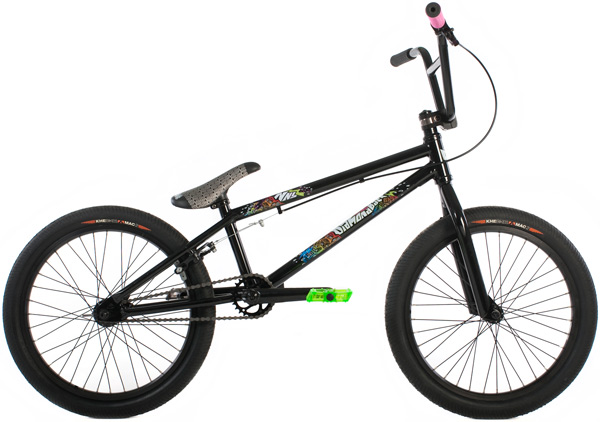

DiamondBack NNY Bike (2011)   The NNY came about trying to create the best street complete on the market, the full 4130 double butted frame comes with a spec list that includes Full 4130 bars and forks, Affix Kronos freecoaster hub, KHE MAC2 street tyres and Affix stem.  Frame: Full 4130 Butted chromoly street 20.5" Top Tube 14.5" CS Fork: Butted Chromoly Cranks: Tubular 4130 chromo 3 piece Bottom Bracket: Affix Bush Mid Pedals: Affix Artix Sprocket: 25T Freewheel: 9T Rear Brake: Caliper Front Brake: U-Brake Levers: Alloy Bars: 2 Piece 8.2" Rise 28.8" Wide Stem: Affix System Rear Hub: Affix Kronos Freecoaster 14mm Front Hub: 10mm Rims: Doublewall Alloy Tyres: KHE MAC2 Seat: KHE Loyal Weight: 22.5lbs

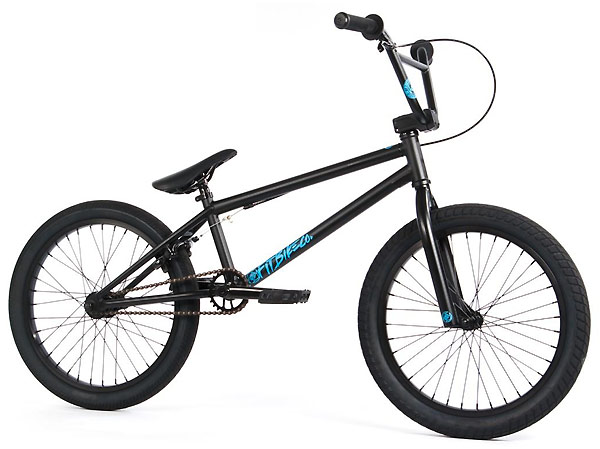

Fit BF 1 Bike (2011)   Frame: 20” top tube, Integrated headtube, welded 990’s Forks: 4130 Cro-mo, 3/8" slots Cranks: Tubular Cro-mo 170mm Bottom Bracket: Sealed bearing mid Sprocket: Fit DLS 25T Freewheel: 9T Brakes: Tektro U-Brake (rear), Generix (front) Levers: Tektro Alloy (rear), Generix (front) Bars: 2 piece, 7.75"x26" Stem: Front loading Alloy Headset: Campy compatible 45°/45° sealed Grips: Fit Brian Foster Rear Hub: Sealed Cassette 14mm axle Front Hub: Alloy 3/8” axle Rear Rim: Weinmann 36h Front Rim: Weinmann 36h Rear Tyre: Fit 2.10 Front Tyre: Fit 2.25 Seat: Fit Embossed 8mm rails Seatpost: 25.4mm Seatclamp: Alloy Pedals: Odyssey Plastic

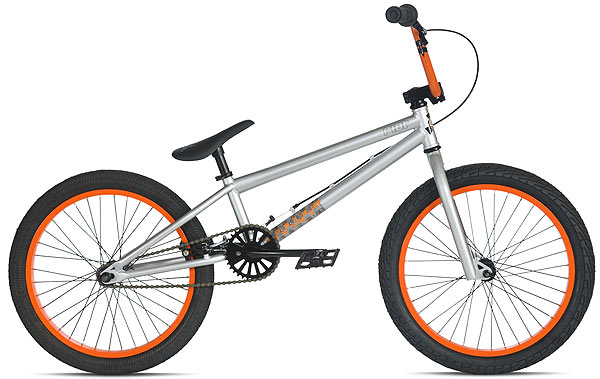

Stolen Riot Bike (2011)   Frame: 1020 Hi-tensile Steel TIG welded frame w/ mini-5mm dropouts, American BB shell and compact geometry for smaller riders, 19.50" TT / 14" CS / 74.5 degree HT / 71 degree ST Forks: Stolen Tornado Hi Ten Tubing micro dropout Cranks: 1pc Chromoly 170mm - Black Bottom bracket: American BB Sprocket: Stolen OE Class-Ring 33t Freewheel: 13T Odyssey Freewheel Chain: KMC Z410 Rear Brake: Tektro 907 Forged Alloy U-brake Front Brake: Generix Levers: Tektro Alloy clamp & blade, Black Bars: Stolen MID Bar 7.75" rise / 26.75" wide 10 degree back/2 degree up Stem: Stolen Convict III Alloy Front clamp 50mm reach Headset: 1 1/8" Threadless-type Grips: Stolen Money Grip w/ Vortex Nylon BarPlugz Rear Hub: 14mm axle, 36h Front Hub: 3/8" axle, 36h Rims: 6061 Alloy Front Tyre: LoHi OverLord 2.2" Rear Tyre: LoHi OverLord 2.2" Seat: Stolen Combo PC Seat Seatpost: Stolen Combo 25.4mm x 112mm Alloy Post Pedals: Stolen Thermalite w/ Chromoly axle
